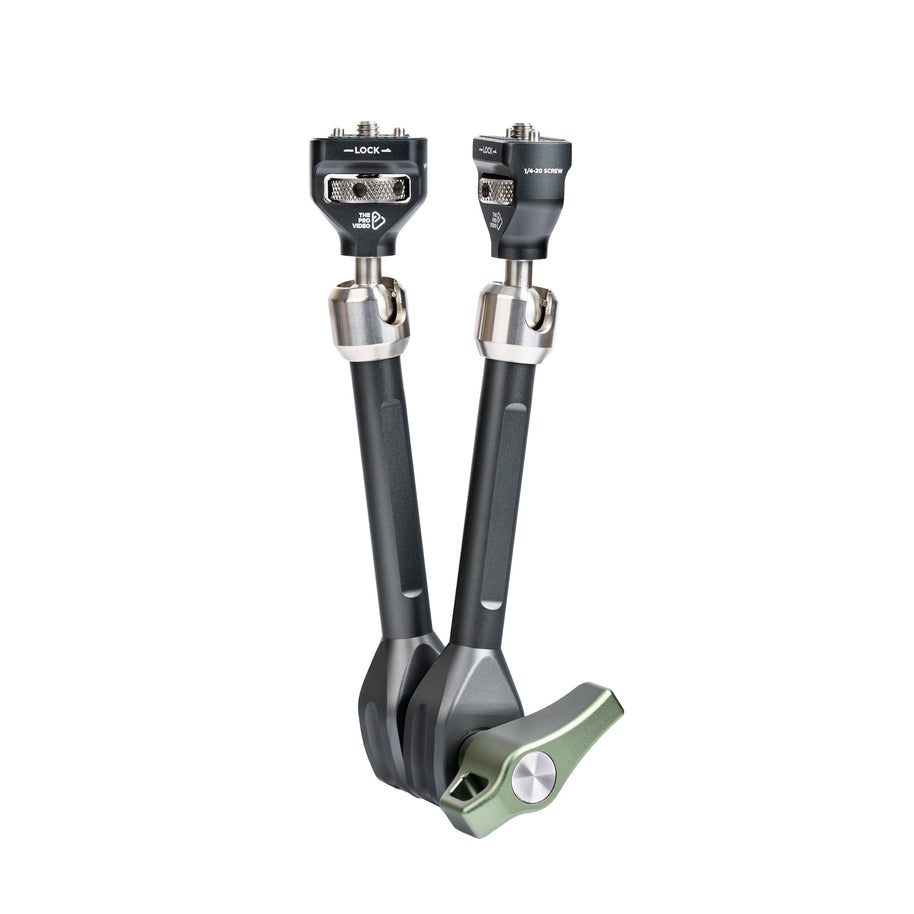

12 inch articulating arm shown in both NATO clamp and 1/4-20 screw versions
Pair of 12 inch articulating arms with green locking levers, shown folded
The Pro Car Mount

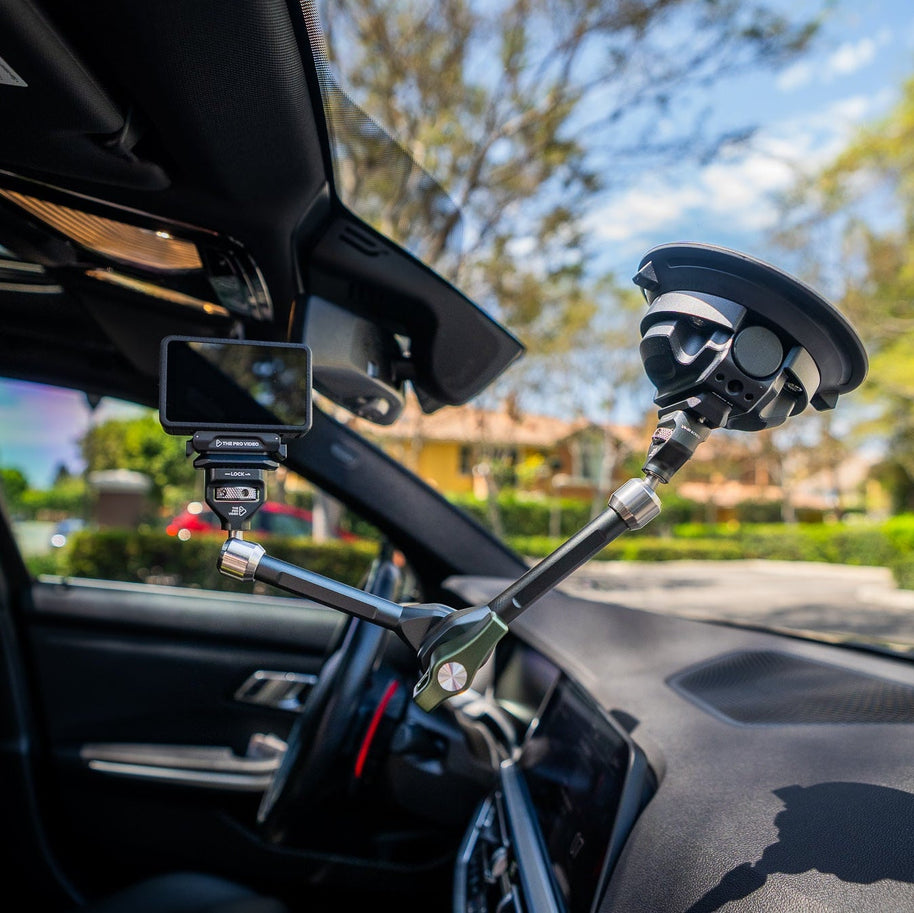

12 inch arm suction-mounted to a windshield, holding a camera inside a car
The Pro Car Mount
The Pro Car Mount
The Pro Car Mount
The Pro Car Mount
1. Choose your setup
$76.00

What's in the box

Magic Arm NATO + Suction Cup — 2 pieces

  • 1 × 12" Pro Articulating Arm, NATO Clamp
  • 1 × 4.5" Heavy-Duty Suction Cup Mount

30 day returns Within 30 days of delivery

Standard U.S. shipping $9.99 Free over $150

Add to your setup

Compatible gear for this product

Pro Universal NATO Phone ClampDJI Magnetic Quick-Release Mount6.5"  Extension Arm
Create your comboSave 10% Pick your pieces and save 5%
About this product

The exterior rig for car creators. A 12" arm on a 4.5" suction cup, for hood, door, fender and bumper angles.

Payload
  • 12" arm: stationary up to 3 kg / 6.6 lb; in motion up to 1.5 kg / 3.3 lb, max 80 km/h (50 mph), dual-arm support required
  • 4.5" suction cup: stationary up to 4.5 kg / 10 lb; in motion up to 1.5 kg / 3.3 lb
  • Where parts are combined, the lowest rating governs.
Technical
  • 12" arm: standard articulating magic arm. Mounts on NATO clamp, or 1/4"-20.

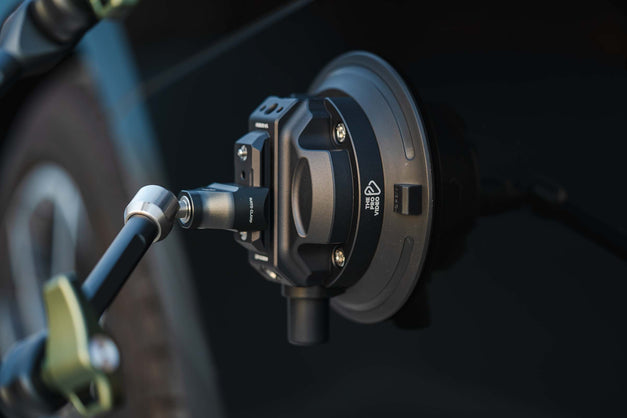

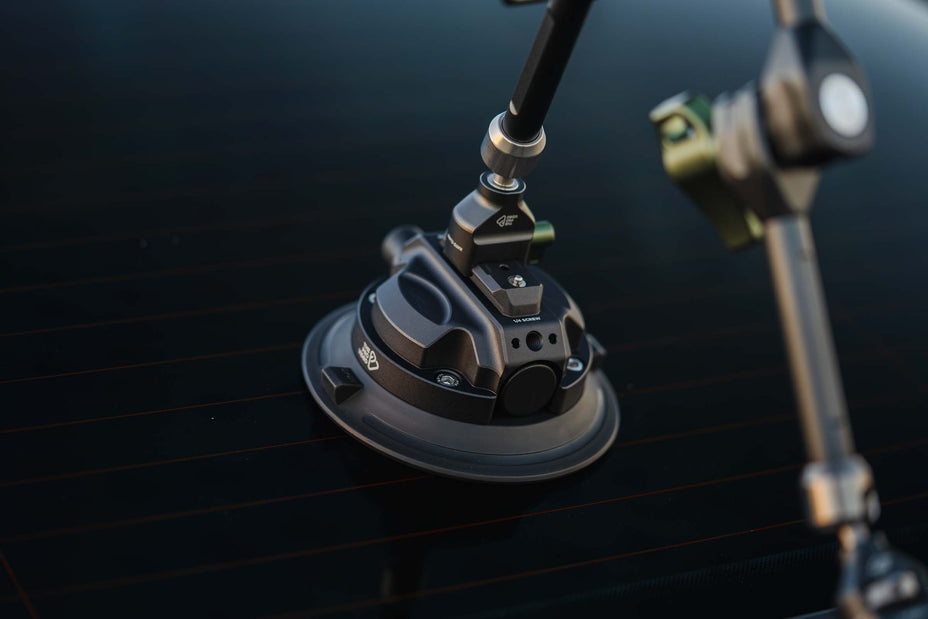

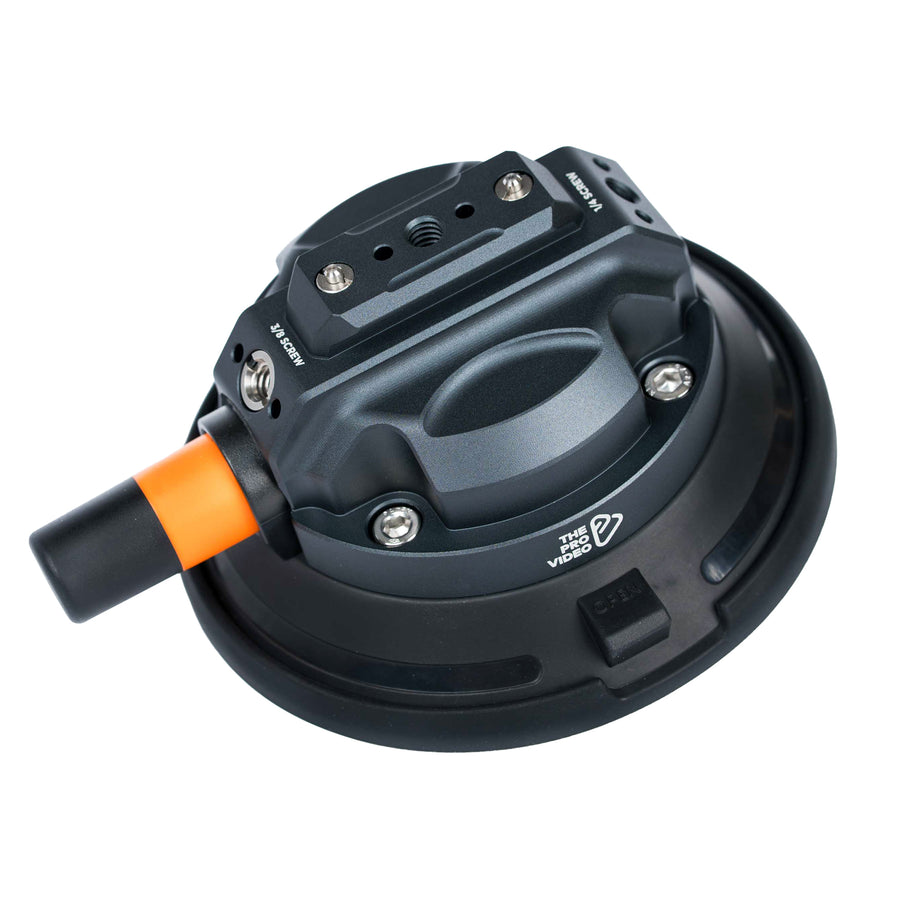

  • 4.5" suction cup: NATO rail top plate with 1/4"-20 and 3/8"-16 mounts and ARRI locating pins.
  • Suction cup use: smooth, flat, rigid glass or painted metal only. Not on ceramic-coated, curved, waxed, textured, plastic or wrapped surfaces. Clean before each install.
  • Camera limit: action cameras only.
How to use

Single Kit: one point, short reach

One suction cup, one arm. Use it when the camera sits close to the mount: hood-to-windshield POV, door panel at mirror height, interior glass. Keep the arm folded short and the camera near the base. The closer the camera is to the suction cup, the less leverage works against the seal.

The Single Kit is not a long-reach exterior rig on its own. Once you extend the arm out horizontally, or mount low on a bumper, the setup needs a second support point.

Dual Kit: two points, full reach, less shake

Two suction cups, two arms, one clamp bridging them. This is the kit for long horizontal reach and for surfaces that move.

Why two mounts. A single arm extended 12" horizontally is a lever. Road vibration works on that lever every second you drive, and vibration is what breaks a suction seal, not weight. Add a second mount and the two arms meet at the camera to form a triangle. A triangle cannot flex without one side changing length, so the rig stops swinging and the load is shared across both seals. Triangle over L-shape, always.

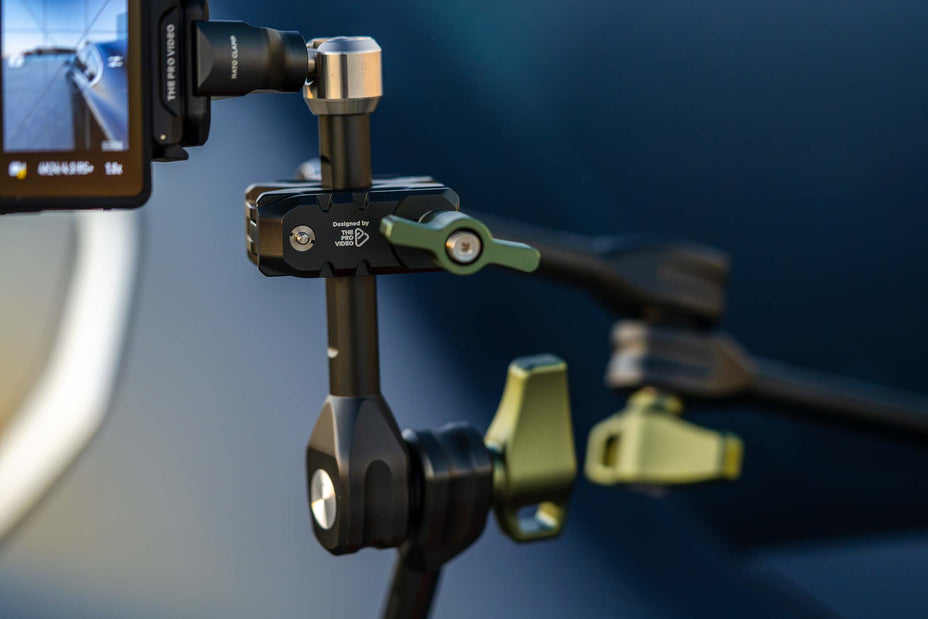

The QuickLock clamp is the bridge. It clamps onto the second 12" arm and gives you a NATO rail at the camera. Mount the camera on the rail so both arms carry it, or clamp directly to the camera cage. Either way the second arm is doing structural work instead of just holding on.

Shipping & returns

Ships from the USA within 3–5 business days. Free U.S. shipping on orders over $150. Shipping policy

You have 30 days from delivery to request a return. Items must be unused and in the original packaging. Email support@theprovideo.com with your order number.

Changed your mind or ordered the wrong item? We accept the return, but return shipping is paid by the customer and the original shipping cost is not refunded. Return policy

1-year warranty

Covered against manufacturing defects in materials and workmanship for one year from delivery. If we confirm a defect, we send a free replacement — shipping included.

Read the full Warranty & Safety Policy

THE PRO CAR MOUN

Two mounts. One rig. Less shake.

12" Pro Arms on 4.5" suction cups, bridged by a clamp. Built for the exterior shots a single cup can't hold.

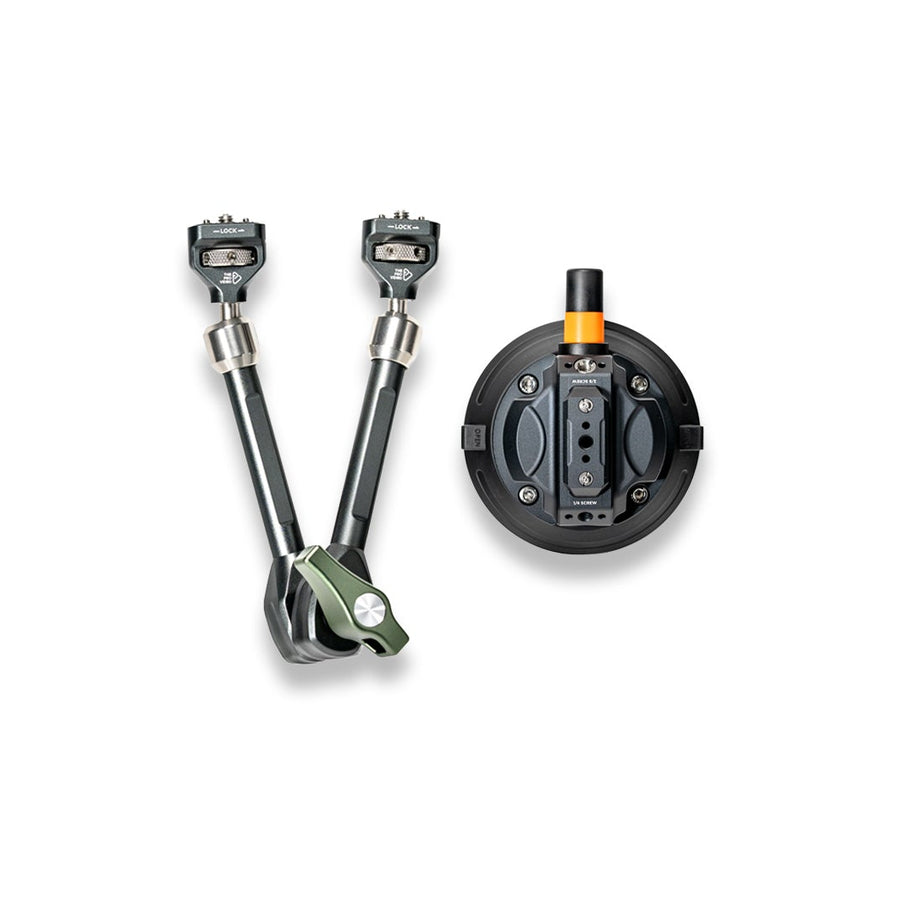

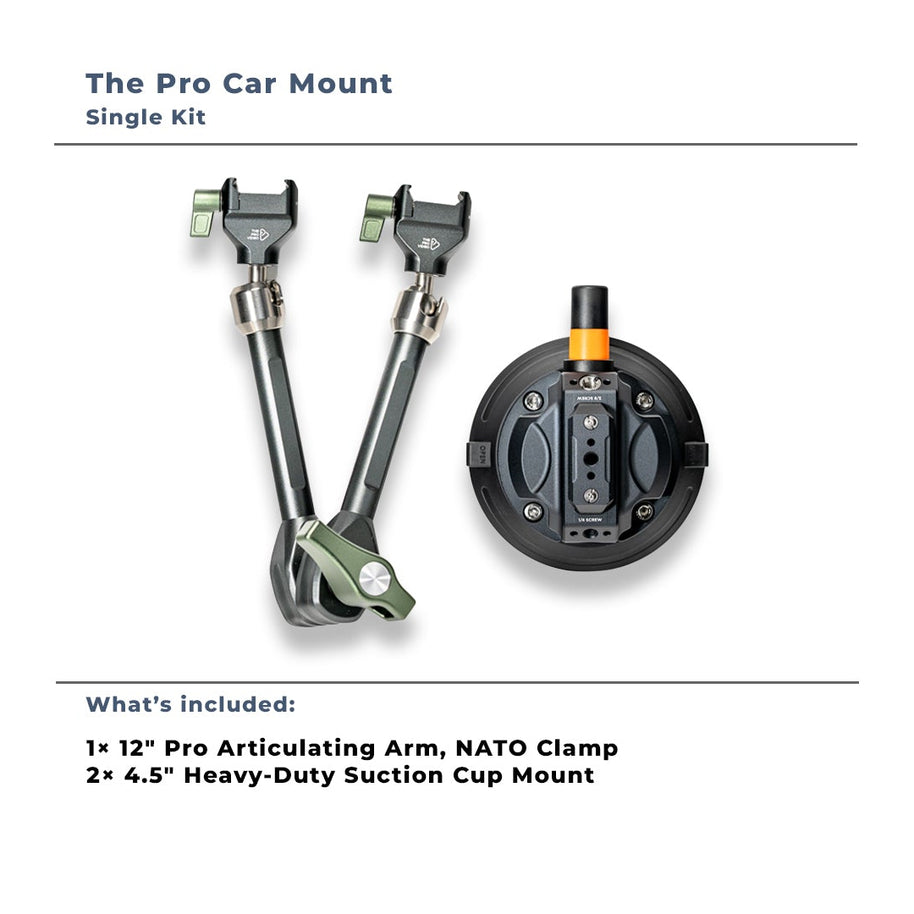

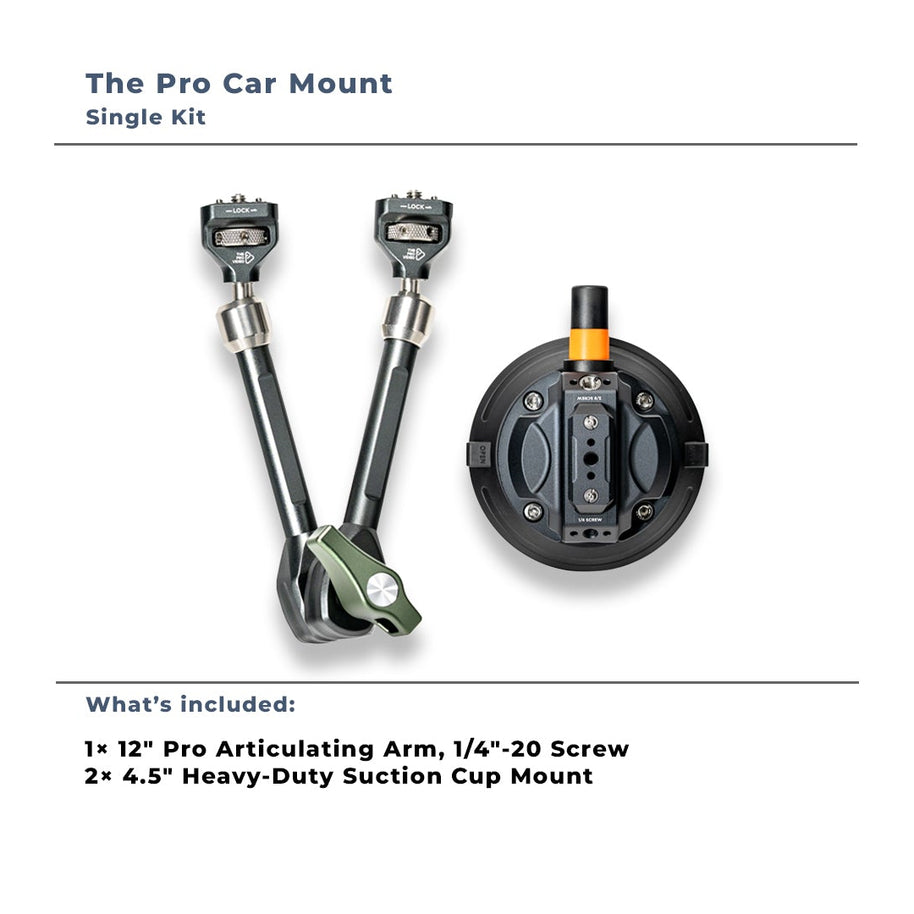

THE PRO CAR MOUNT: Single Kit

One 12" Pro Arm on a 4.5" suction cup. Short, tight, close to the car the single-point setup for hood, door, and glass angles.

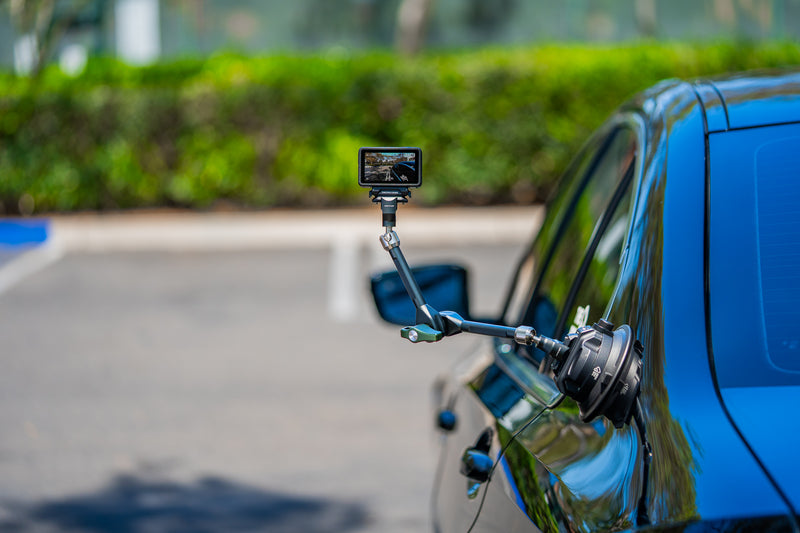

REAR QUARTER SHOT

Side-mounted, angled back at the car. The classic rolling-shot angle.

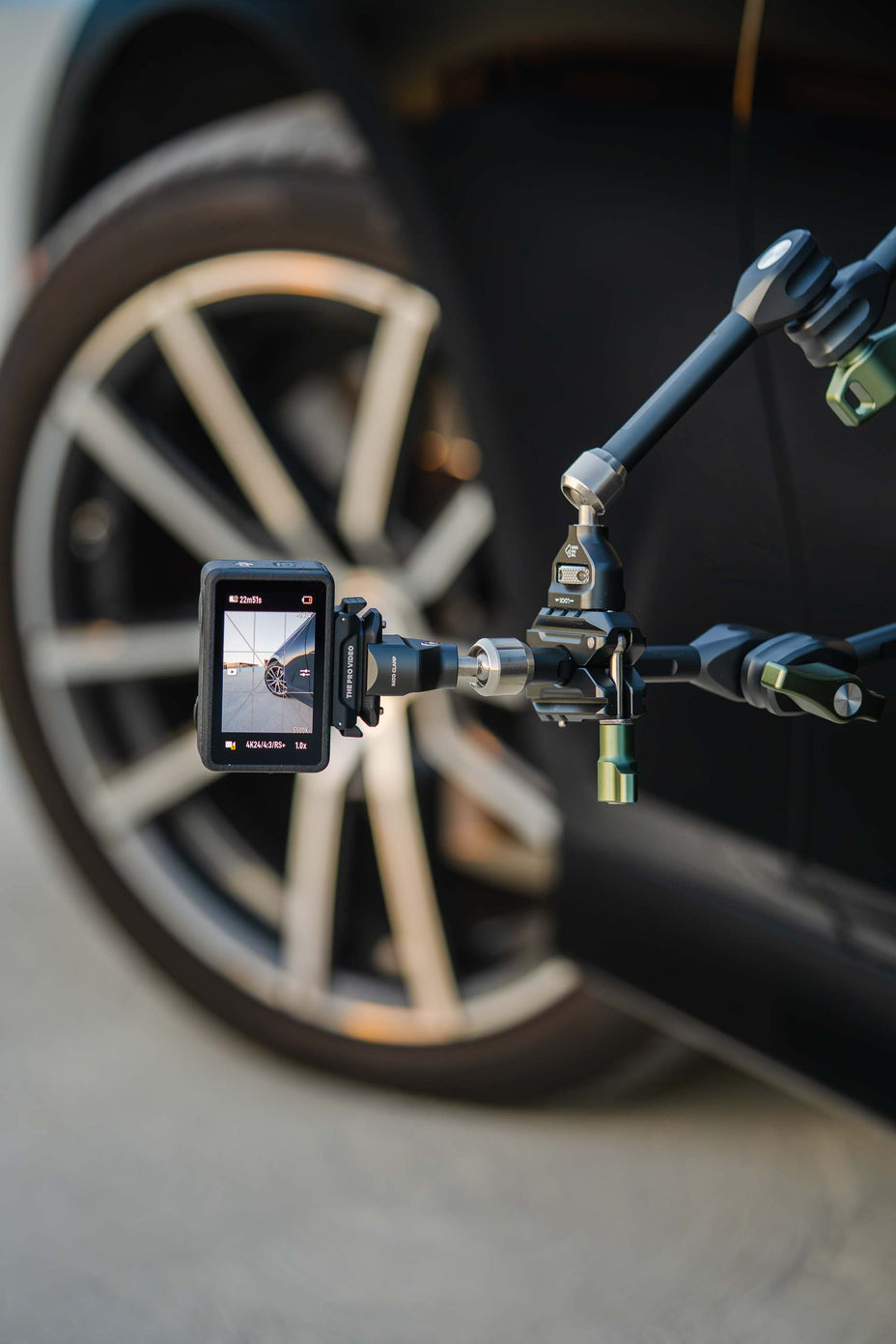

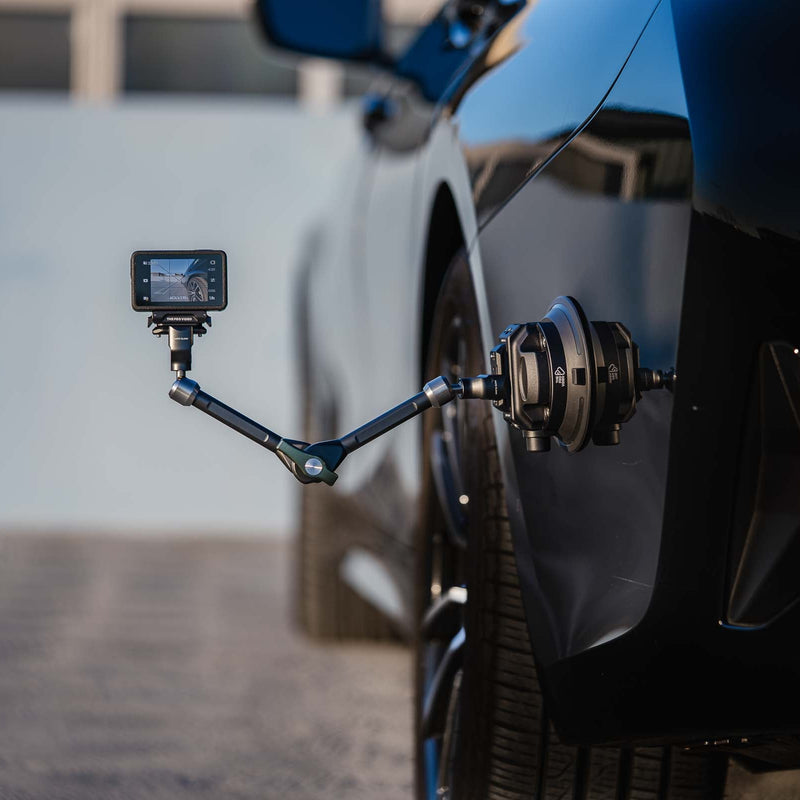

LOW WHEEL SHOT

Mounted low behind the rear wheel. Road, spin, and body in one frame.

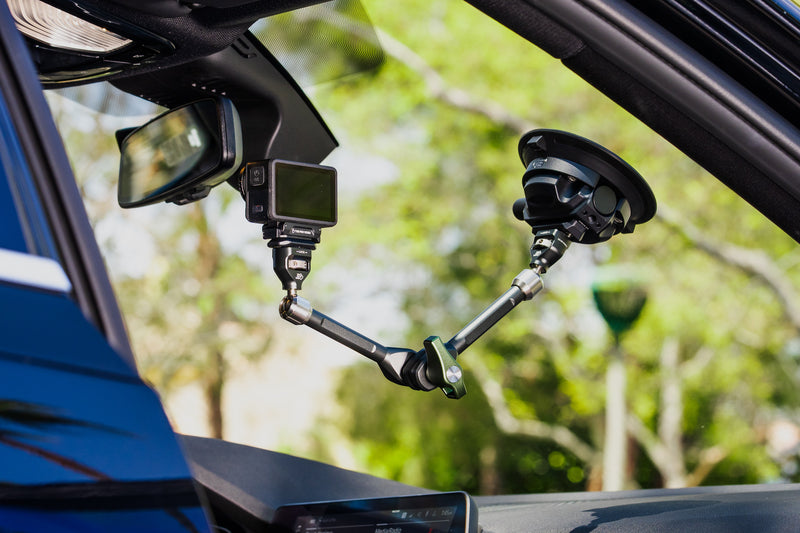

INTERIOR POV SHOT

Windshield mount facing forward. Driver's view, or flip it for the driver reaction shot.

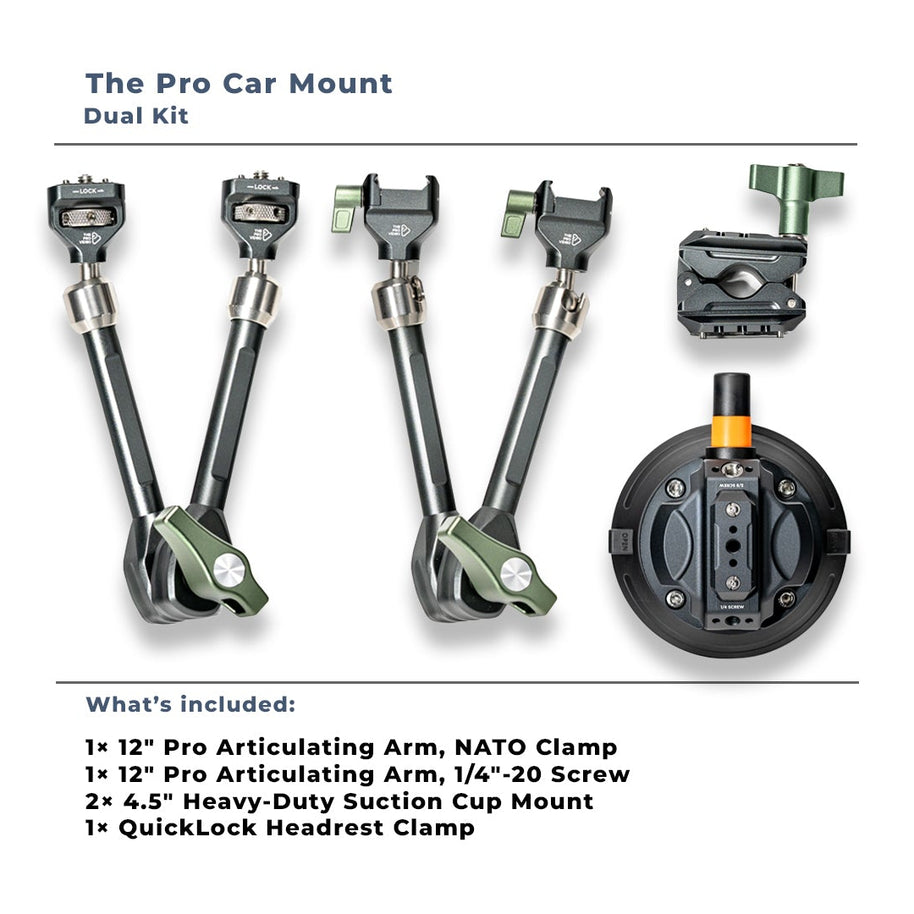

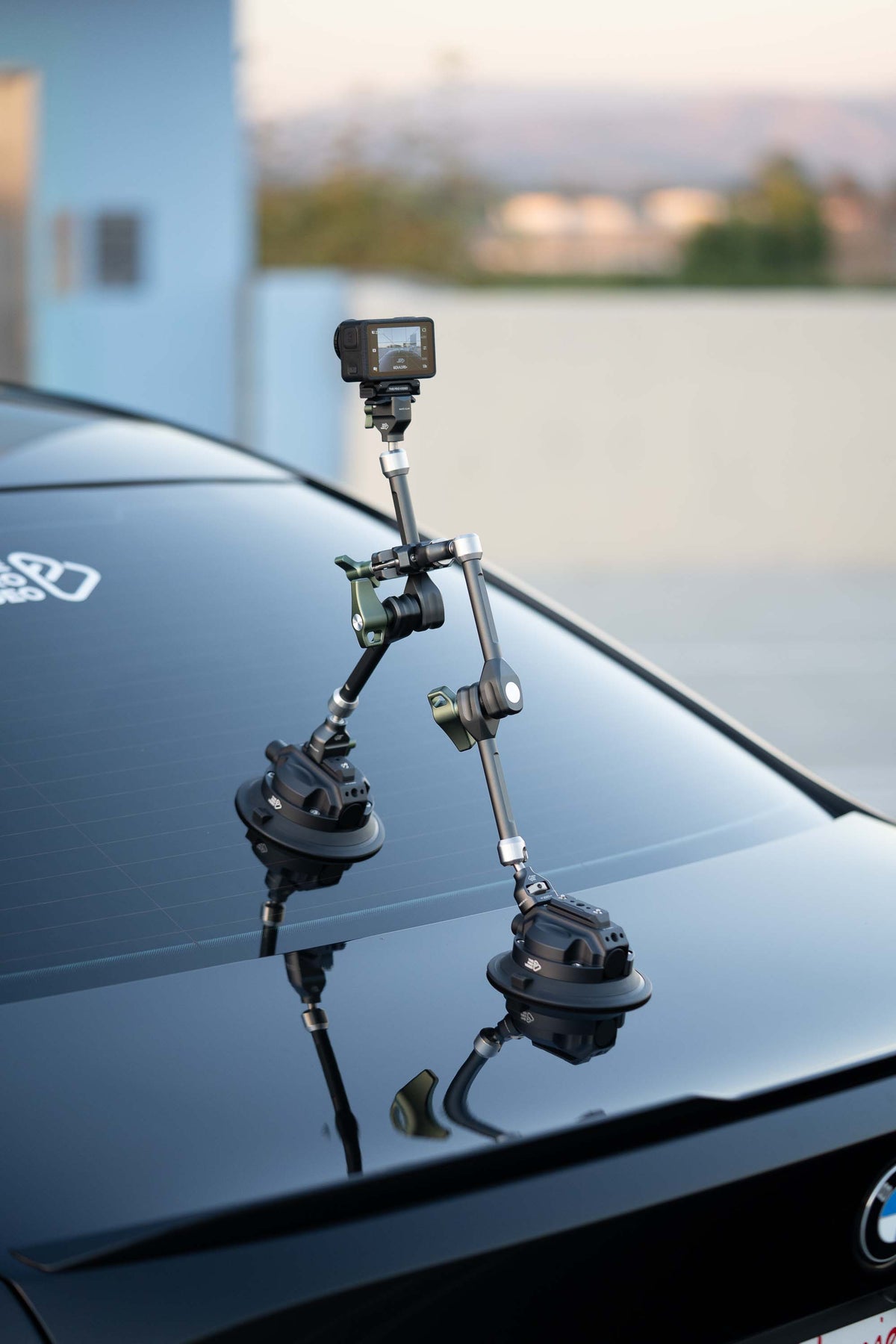

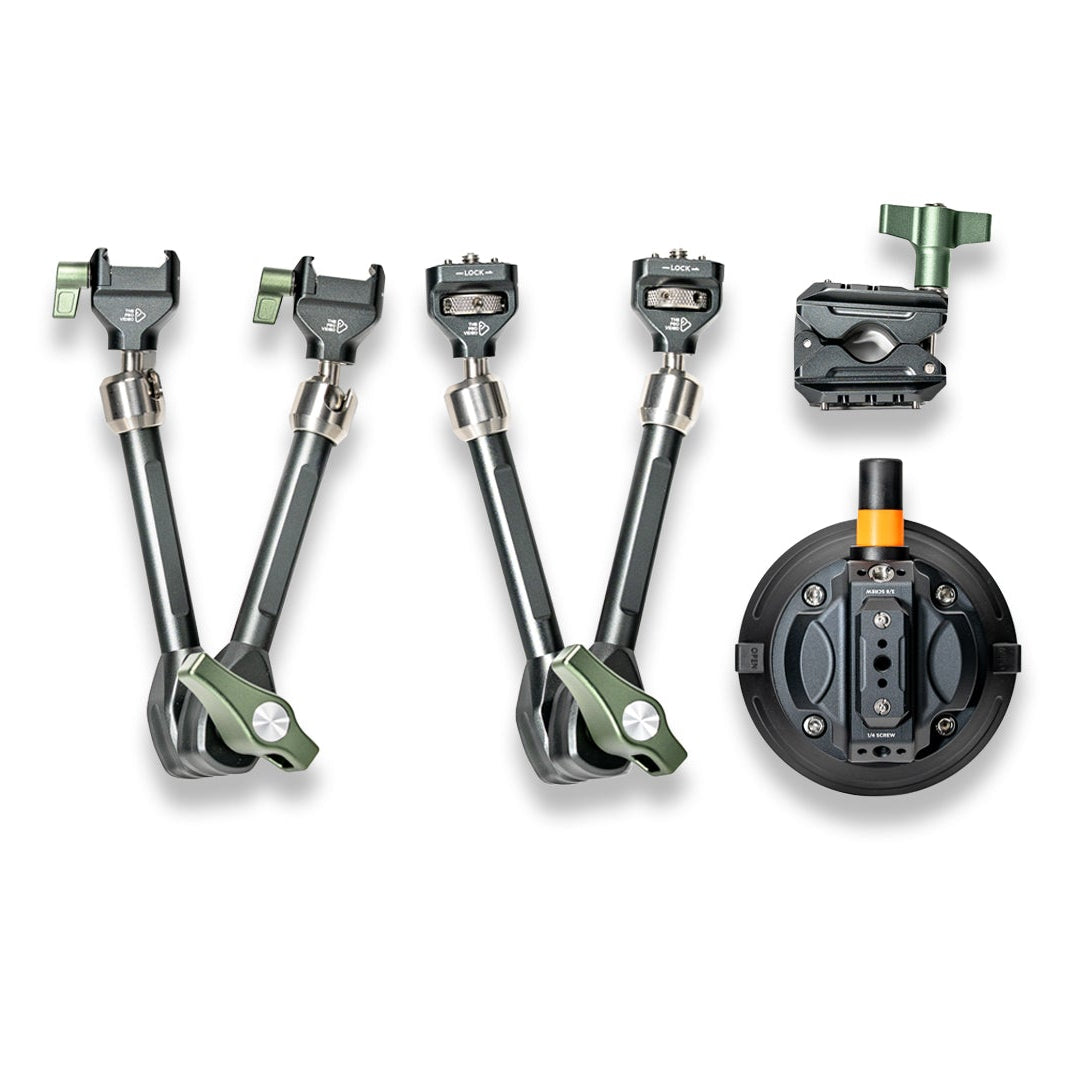

THE PRO CAR MOUNT: DUAL KIT

Two 12" Pro Arms, two suction cups, one clamp bridging them. When you extend for the wide shot, the second mount is what keeps it steady.

REAR BUMPER SHOT

One cup on the bumper, one on the fender. Bumpers flex; the fender mount takes the shake out and keeps it safe.

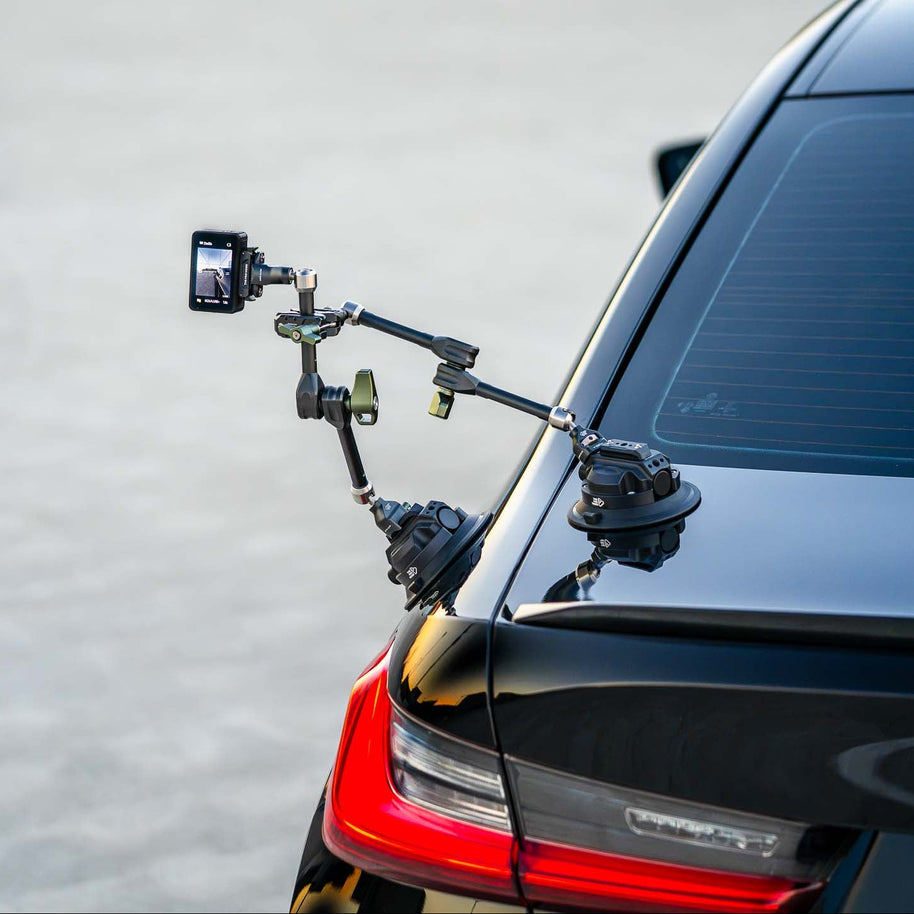

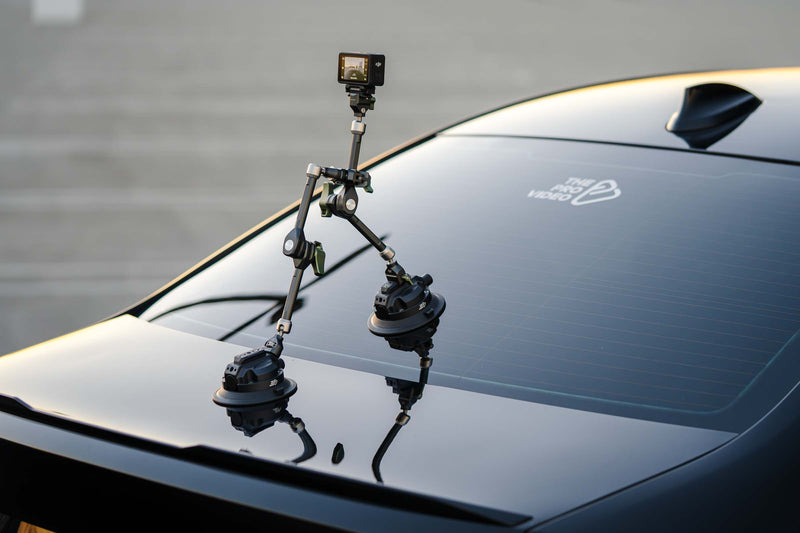

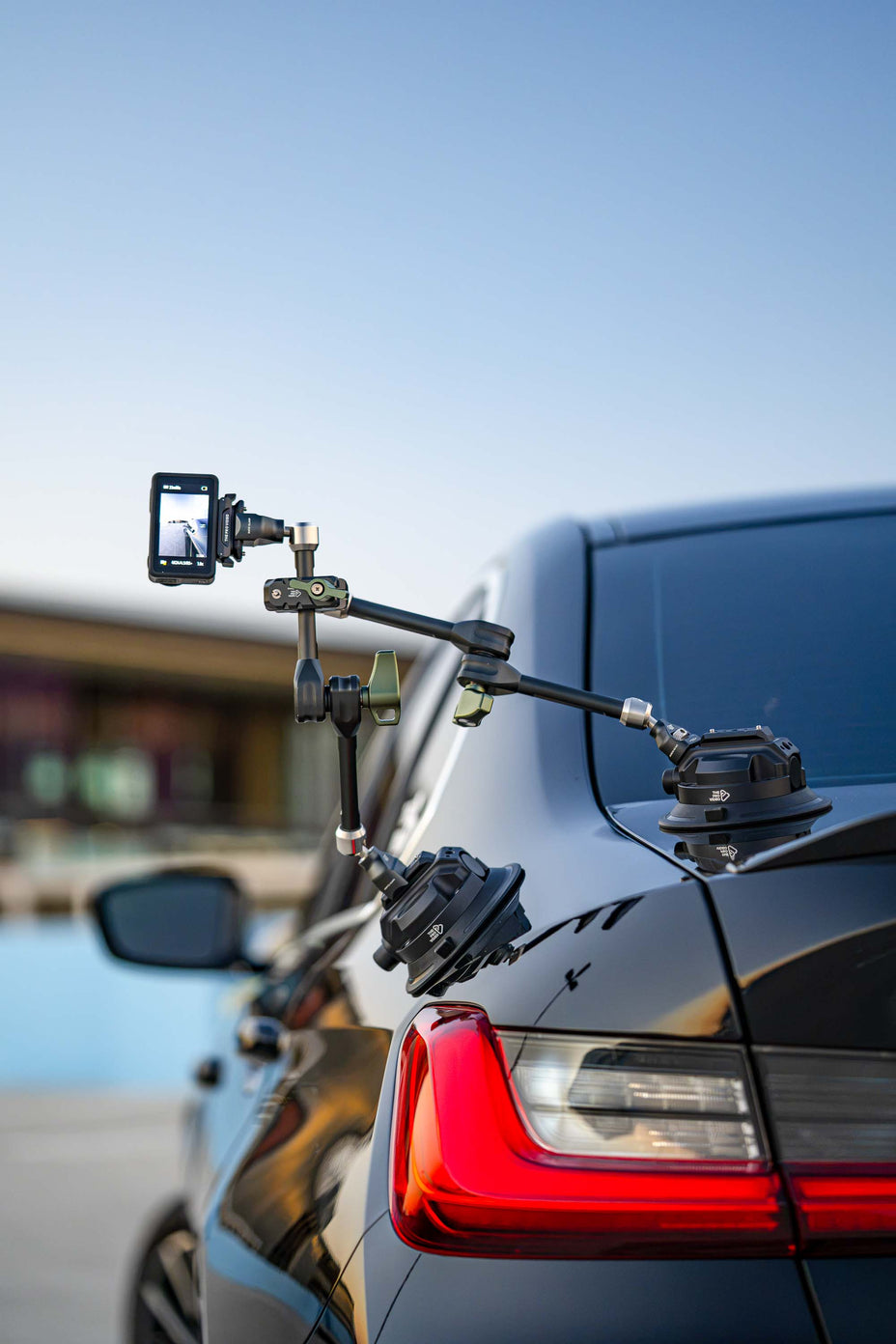

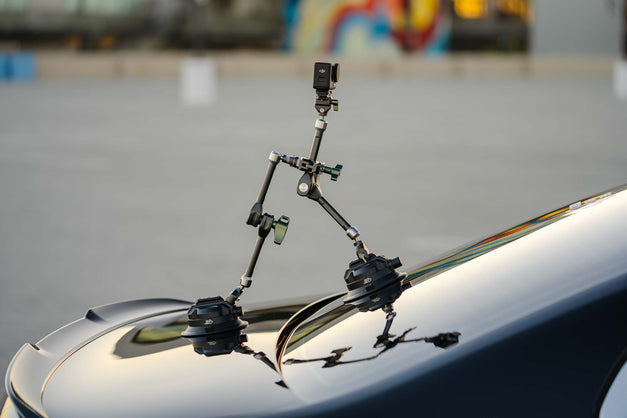

REAR WINDOW SHOT

One cup on the rear glass, one on the taillight housing. Two rigid points, cleanest shot in the set.

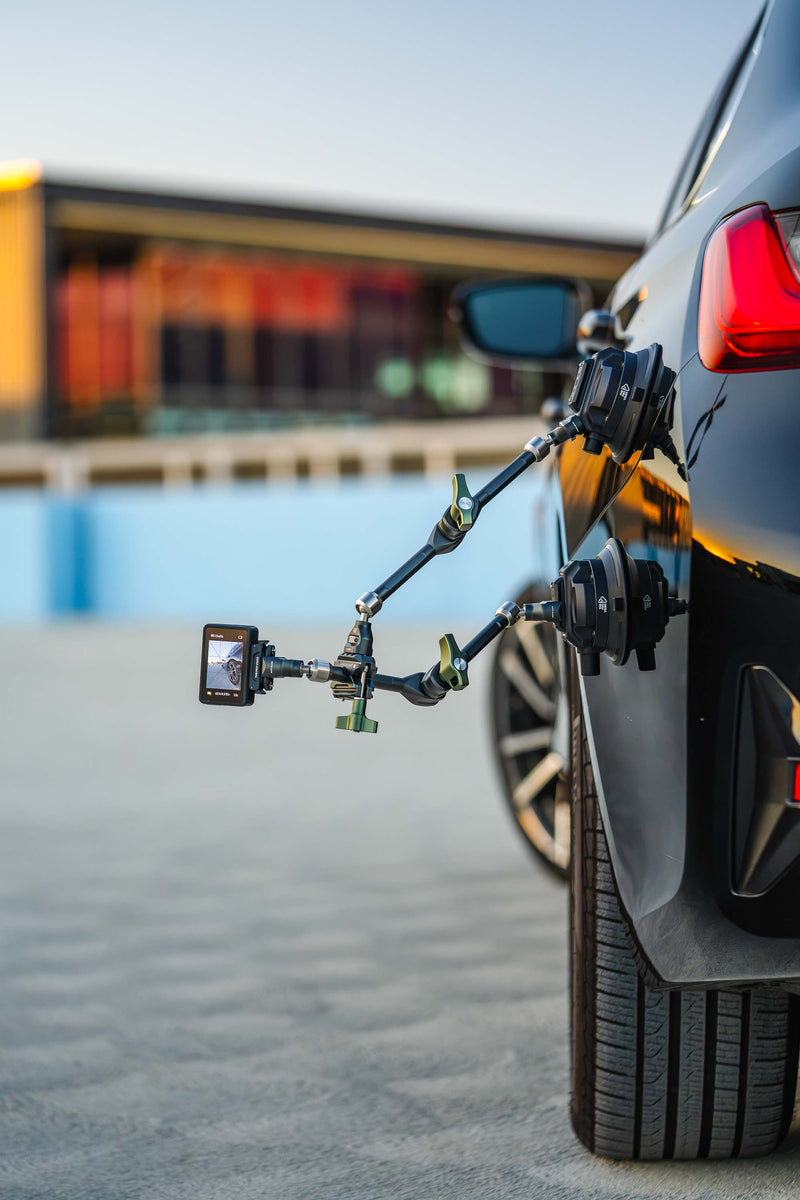

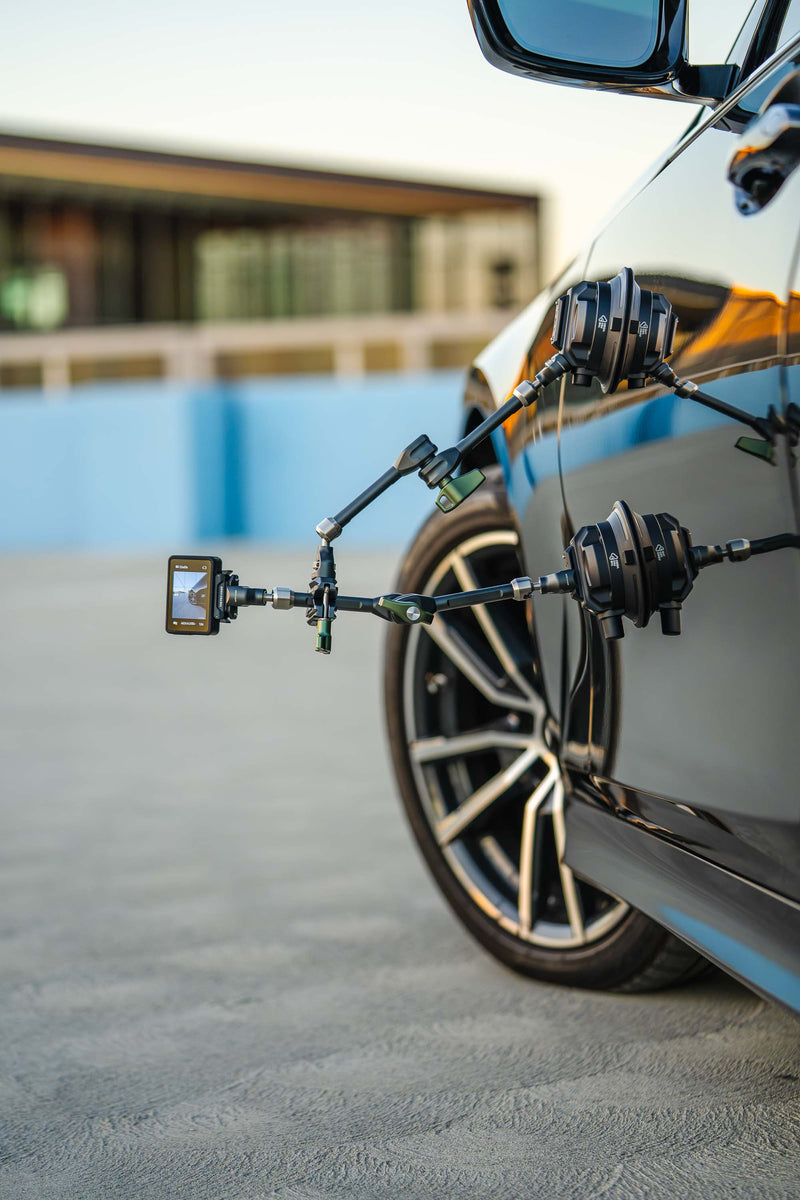

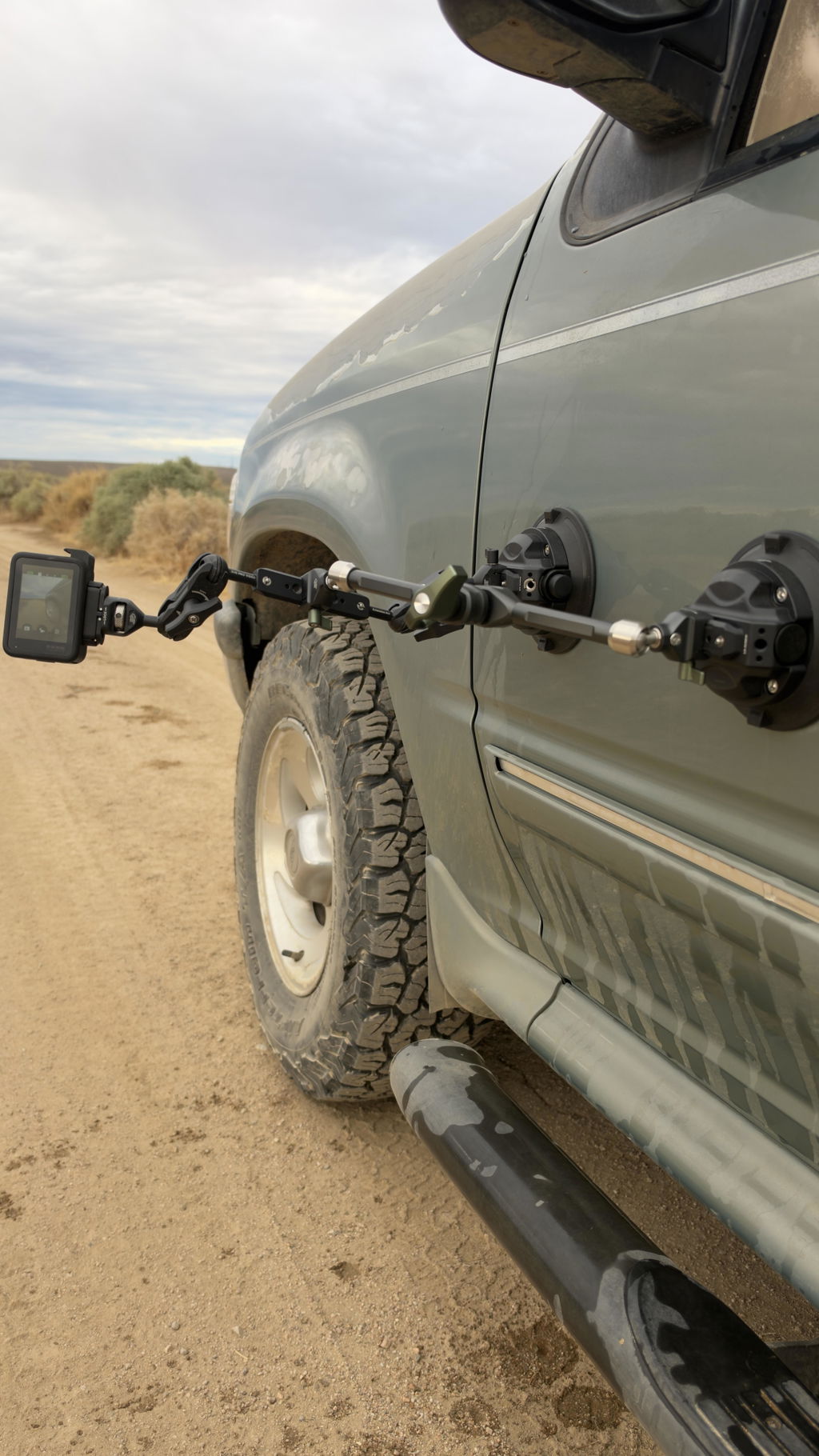

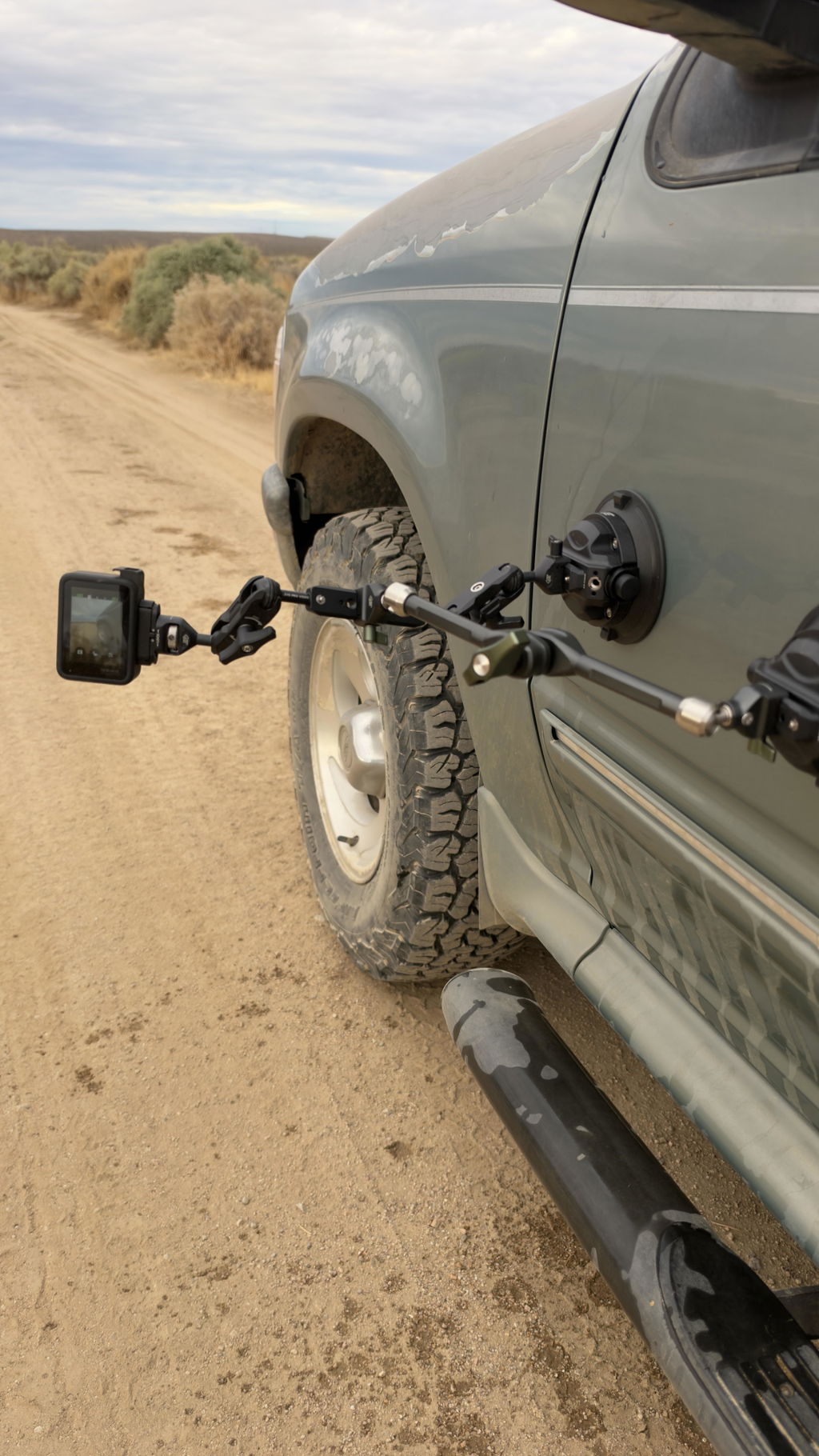

SIDE WHEEL SHOT

Two cups on the door, arms extended out for the wide side angle. This is the reach a single cup can't hold.

Payload Guide

Longer setups create more leverage and more vibration. For high-speed shots, side angles, or bumper mounts, add a second suction cup support for better stability.

Payload

12" Pro Articulating Ar

  • Stationary: up to 3 kg / 6.6 lb
  • In motion: up to 1.5 kg / 3.3 lb, max 80 km/h (50 mph), dual-arm support required

4.5" Heavy-Duty Suction Cup Mount

  • Stationary: up to 4.5 kg / 10 lb
  • In motion: up to 1.5 kg / 3.3 lb, max 80 km/h (50 mph), dual-arm support required

Stability & Dual-Arm Support

  • At full extension, the 12" arm gives you enough reach for wider side angles, but longer reach also increases leverage and vibration. That’s why we recommend dual-arm support whenever the arm is fully extended, mounted on a front or rear bumper, or positioned against strong airflow.
  • A single arm can still get the shot, but for professional results with less movement and better stability, the second support arm is the recommended setup.
